| Product Brand | Weidmüller | |
| Product Category | EX Signal Isolating Converter | |
| Product Designation | Temperature Transducer | |

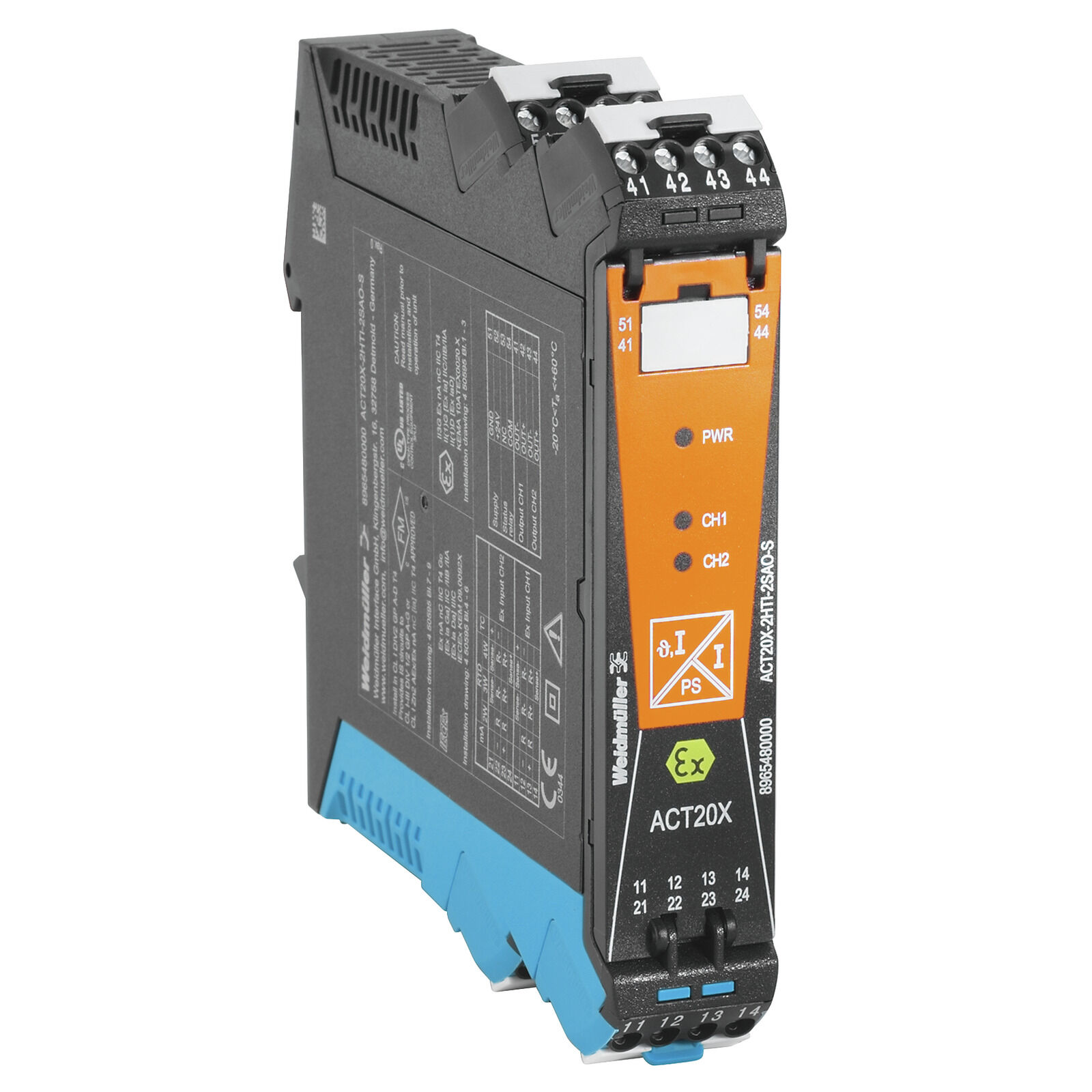

| Product Type | ACT20X-2HTI-2SAO-S | |
| Order Number | 8965480000 | |
| Number of Channels | 2 | |

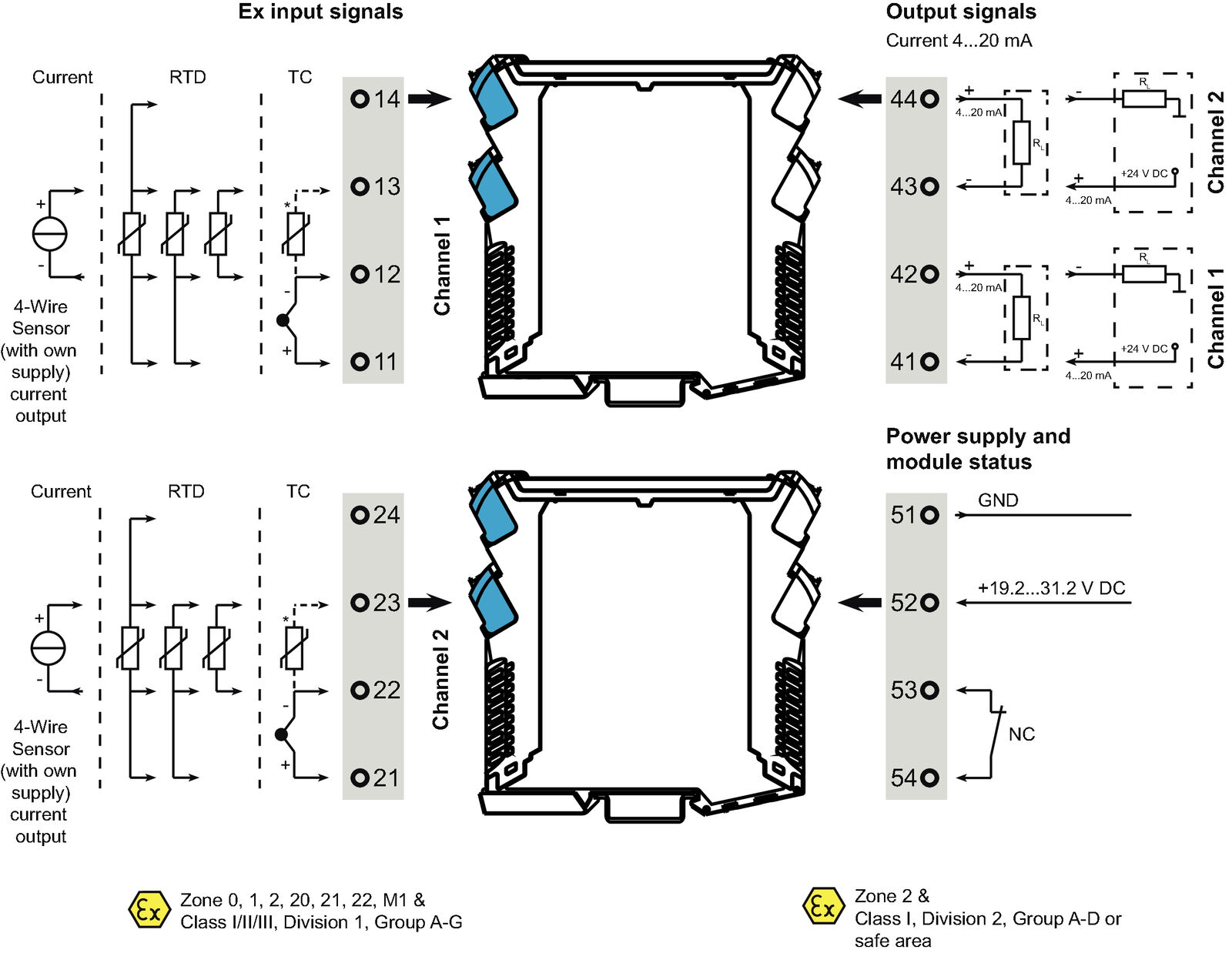

| Input Types | RTD, Thermocouple, 0(4)…20 mA | |
| Output Signal | 0(4)…20 mA (Active / Passive) | |
| Supply Voltage | 19.2…31.2 V DC | |
| Power Consumption | ≤ 1.4 W | |
| Response Time | ≤400 ms (Current), ≤1 s (Temperature) | |
| Isolation Voltage | 2.6 kV | |
| Protection Degree | IP20 | |

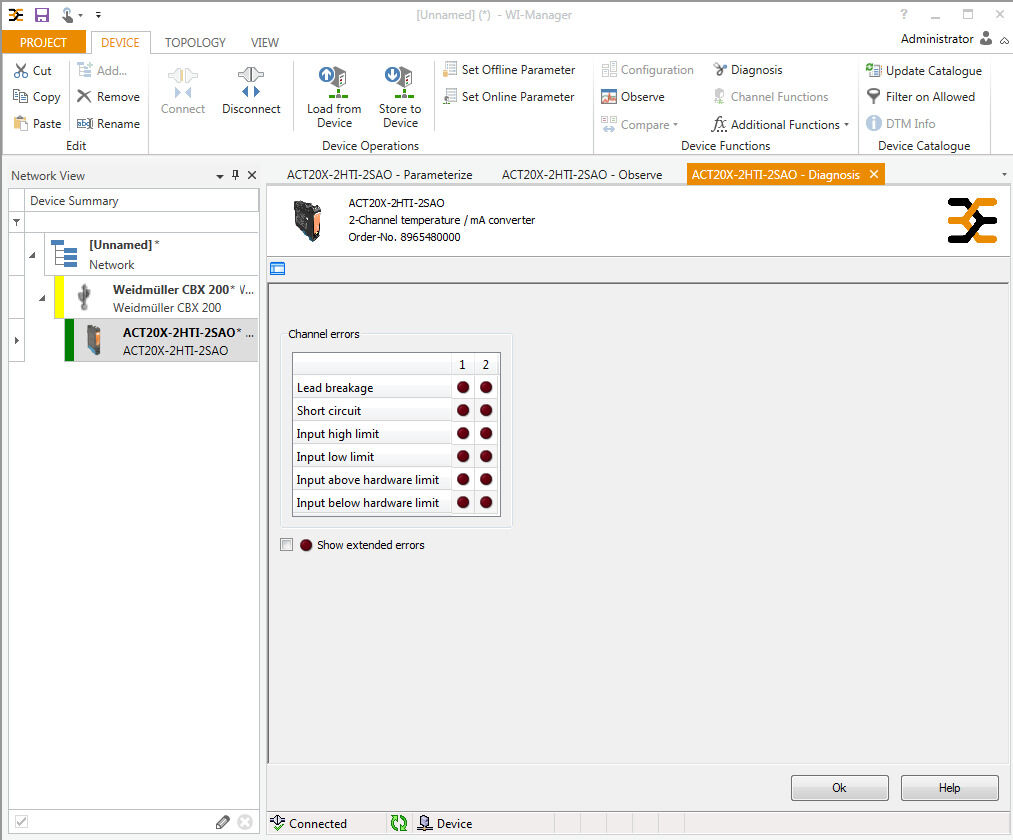

| Configuration | FDT/DTM Software | |
| Mounting | 35 mm DIN Rail | |
| Operating Temperature | -20°C … +60°C | |
| Functional Safety | SIL 2 (IEC 61508) | |
| Approvals | ATEX, IECEx, FM, cULus, CE | |
| Applications | Hazardous Areas, Process Automation, Temperature Measurement, RTD & Thermocouple Signal Isolation | |
